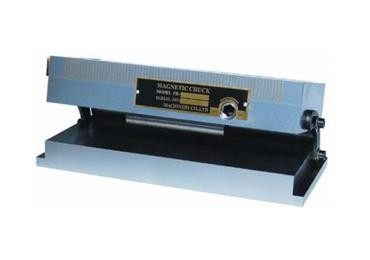

Schematic Diagram of Single Tilt Permanent Magnet Sucker
|
|
Single tilt permanent magnet chuck
Product name：Single tilt permanent magnet chuck
Product performance ：Single tilt permanent magnet chuck is suitable for precise grinding of one-sided angle on various surface grinders and EDM machines. The process has been specially treated to make the adjustment more accurate. Selection of high-quality materials, strong suction, small remanence, uniform distribution of magnetic force. The plane accuracy of the magnetic surface remains unchanged when switching on/off. The arrangement of magnetic poles is only 1.55 mm, which can hold smaller parts.
Product specification:
|
205 |
Model |
size(mm) |
Grinding angle |
(kg) |
|
A |
B |
C |
D |
E |
F |
|
205-1 |
XM42-100*175 |
100 |
175 |
84 |
75 |
53 |
0.5+1.5 |
0-45 |
10 |
|
205-2 |
XM42-125*250 |
125 |
250 |
84 |
75 |
53 |
0.5+1.5 |
0-45 |
17.5 |
|
205-3 |
XM42-150*150 |
150 |
150 |
84 |
100 |
53 |
0.5+1.5 |
0-45 |
12.5 |
|
205-4 |
XM42-150*300 |
150 |
300 |
84 |
100 |
53 |
0.5+1.5 |
0-45 |
25 |
|
205-5 |
XM42-200*560 |
200 |
560 |
84 |
160 |
53 |
0.5+1.5 |
0-45 |
75 |
Suggestions for use: There are two ways of installation (through hole/block). Please choose products according to the way of installation.
More specifications can be customized.
|
